  • H3C Series 4-5t

›

H3C Series 4-5t
IC Products

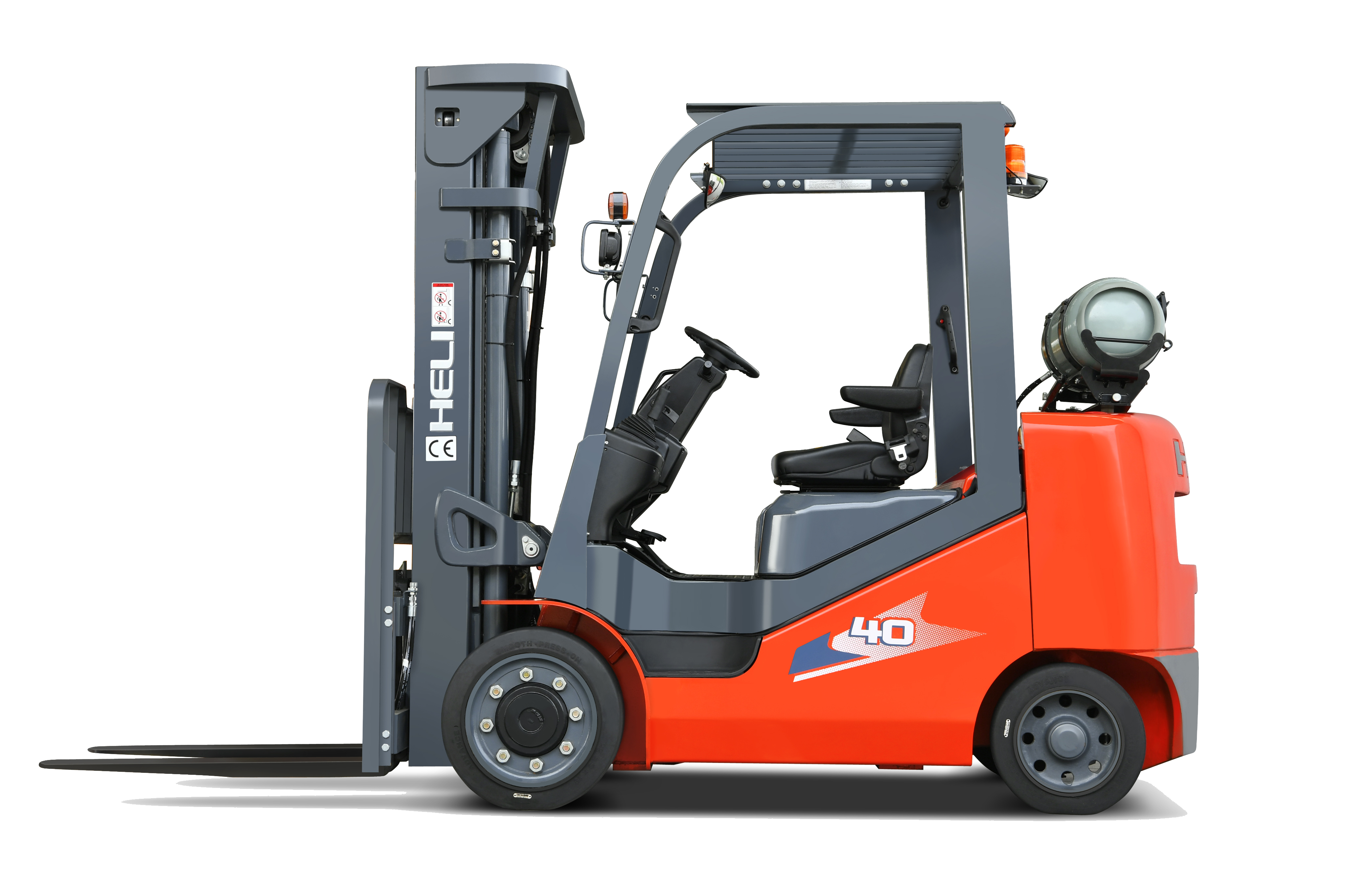

LPG Forklift-Cushion Tire (8000-10000 lbs. Capacity)

Share ：


Product Feature
  • Technical features remarkably improved, superior quality

    • Vibration
  • ·Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.

    • Noise
  • Fully enclosed dashboard and lowering damping device inside the lifting system reduces mast shock and vibration.

    • Workspace
  • ·The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard’s front leg

  • ·Semi-suspension seat, small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve the operation comfort.

    • Working efficiency
  • ·Small turning radius makes steering flexible and easy.

  • ·The truck has fast lifting speed, good sloping ability and high efficiency.

    • Energy efficiency
  • Load sensing hydraulic system reduces energy consumption.

  • Fully electric control engine has large power and low energy consumption.

  • The LPG or gasoline engine has good emission performance

  • ·The truck can effectively prevent the volatilization of the fuel with the pressure fuel cap.

    • Reliability
  • ·The hot air isolating device, optimized thermal duct and the aluminum plate-fin type radiator improve cooling ability and ensure engine working reliability.

  • ·The optimized design of key parts including frame, mast, overhead guard and steering axle improve the truck’s safety and reliability.

    • Maintainability
  • ·Engine hood open angle increased to 80°, contributes to quick and convenient maintenance.

  • ·Smaller Front floor board makes it more convenient to maintain the transmission box.

The main parameter
IdentificationSeries
H3C Series
Model
CPYD40CCPYD50C
Rated capacitylb800010000
Load centerin2424
DimensionsOverall height(overhead guard)in85.885.8
Overall length(with fork/without fork)in153/105157/109
Overall width （single Tyre）in5055.9
Min.turning radius(exterior)(A single tyre is the same double tires)in9195
WeightTotal weightlb1369015498
Wheels,ChassisTyre size(front/rear)in22x9-16
/18x7-12.125		22x12-16
/18x7-12.125
PerformanceMax.traveling speed (Loaded/Unloaded)mph10.5/11.210.5/11.2
Engine mode
PSI 4.3
Engine rated powerHP/rpm102/2300
Engine rated torque(ft*Ib)/rpm244/1400
Engine cylinder number-bore x strokein6-101.6×88.39
piston displancementcu in262.4
