  • H3 Series 2-3.5t

›

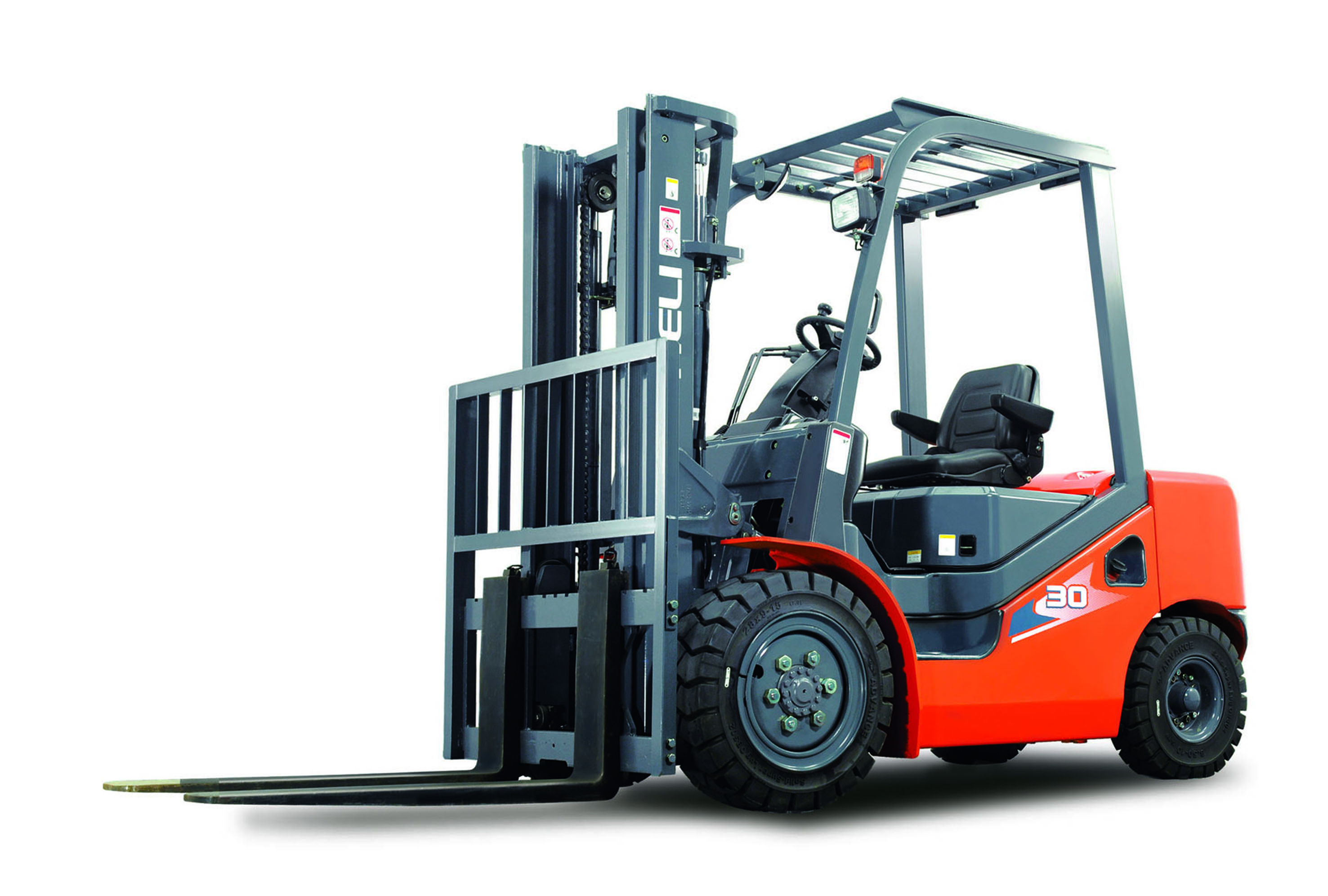

H3 Series 2-3.5t
IC Products
Diesel Forklift-Pneumatic (4000-7000 lbs. Capacity)

Share ：


Product Feature

    H3 series is the key product which HELI blockbuster launches. Based on the high technology,

    mass manufacturing capability and experienced sales and services of HELI, H3 series

    becomes a milestone of HELI’s products which fully consider the needs of market and

    customers.

    Improved performance, superior quality
  • ●Vibration 20% reduced

  • ●Noise 3dB reduced

  • ●Workspace 45% increased

  • ●Operator’s view 20% improved

  • ●Working efficiency 20% improved

  • ●Loading capacity increased over 5%

  • ●Stability 5% improved

  • ●Reliability 40% improved

  • ●Engine hood open angle increased to 80°

The main parameter
IdentificationSeries
H3 Series
Model
CPCD20CPCD25CPCD30CPCD35
Rated capacitylb4000500060007000
Load centerin24242424
DimensionsOverall height(overhead guard)in84.684.685.485.4
Overall length(with fork/without fork)in137.8/101.6143.9/101.6150.3/108.2151.0/2766108.9
Overall width （single Tyre）in45.345.348.248.2
Min.turning radius(exterior)(A single tyre is the same double tires)in85.488.294.595.3
WeightTotal weightlb76658370969211013
Wheels,ChassisTyre size(front/rear)in7.00-12-12PR/6.00-9-10PR7.00-12-12PR/6.00-9-10PR28×9-15-12PR/6.50-10-10PR28×9-15-14PR/6.50-10-10PR
PerformanceMax.traveling speed (Loaded/Unloaded)mph10.6/11.810.6/11.811.2/11.811.8/11.8
Engine mode
Kubota V2403T
Engine rated powerHP/rpm57.9/2400
Engine rated torque(ft*Ib)/rpm146.4/1600
Engine cylinder number-bore x strokein4-3.43×4.03
Piston displancementcu in148.5
