  • H3 Series 1-1.8t

›

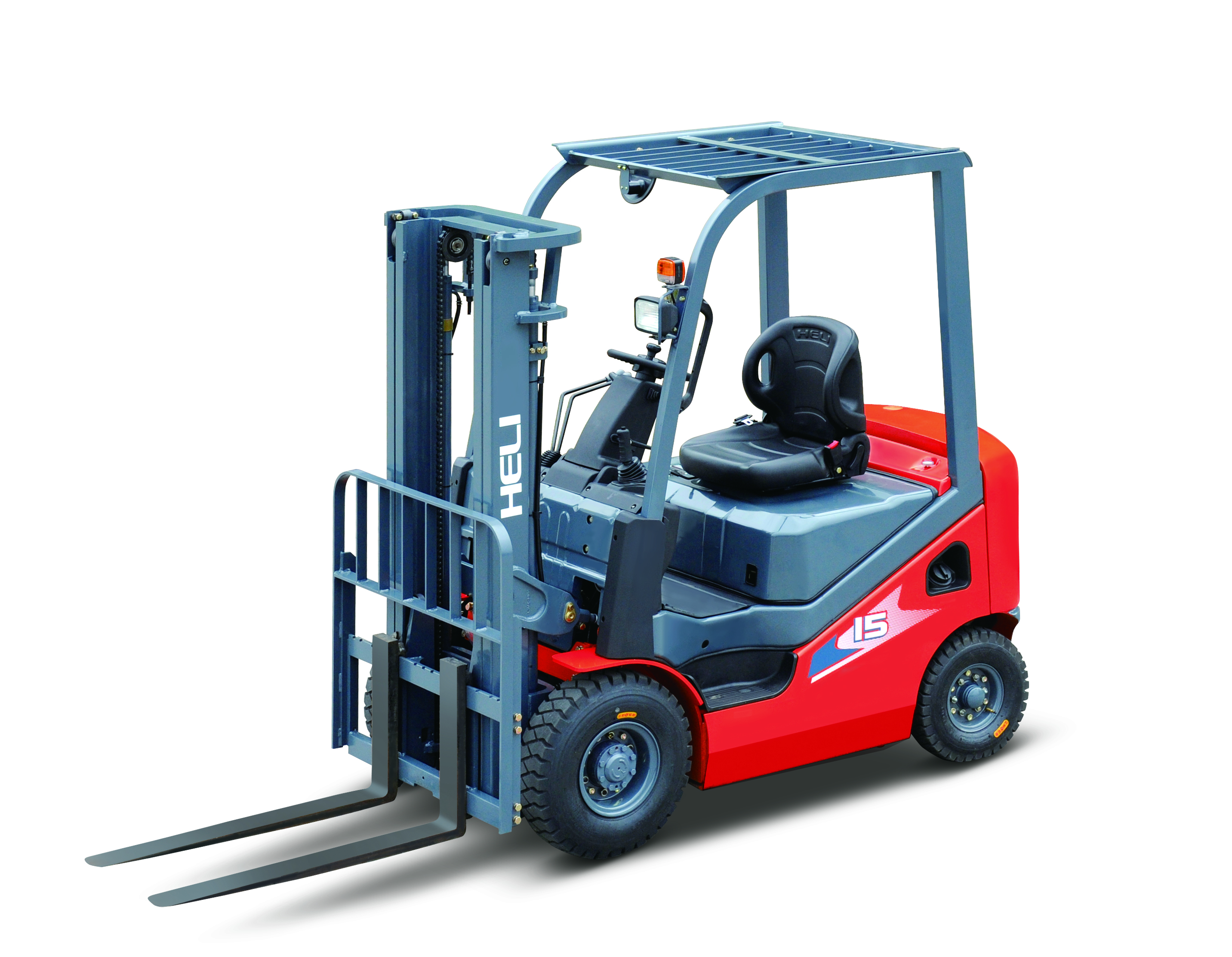

H3 Series 1-1.8t
IC Products
Diesel Forklift-Pneumatic (2000-3500 lbs. Capacity)

Share ：


Product Feature
    The main parameter

    H3 series is the key product which HELI blockbuster launches. Based on the high technology,

    mass manufacturing capability and experienced sales and services of HELI, H3 series

    becomes a milestone of HELI’s products which fully consider the needs of market and customers.

    Improved performance, superior quality
  • ●Vibration 20% reduced

  • ●Noise 3dB reduced

  • ●Workspace 45% increased

  • ●Operator’s view 20% improved

  • ●Working efficiency 20% improved

  • ●Loading capacity increased over 5%

  • ●Stability 5% improved

  • ●Reliability 40% improved

  • ●Engine hood open angle increased to 80°

The main parameter
IdentificationSeries
H3 Series
Model
CPCD10CPCD15CPCD18
Rated capacitylb200030003500
Load centerin242424
DimensionsOverall height(overhead guard)in848484
Overall length(with fork/without fork)in125.9/89.6126.0/89.8126.7/90.5
Overall width （single Tyre）in42.142.142.1
Min.turning radius(exterior)(A single tyre is the same double tires)in73.875.276.0
WeightTotal weightlb541460796365
Wheels,ChassisTyre size(front/rear)in6.50-10-10PR/5.00-8-8PR6.50-10-10PR/5.00-8-8PR6.50-10-10PR/5.00-8-8PR
PerformanceMax.traveling speed (Loaded/Unloaded)mph10.6/11.210.6/11.210.6/11.2
Engine mode
Kubota V2403
Engine rated powerHP/rpm45.7/2400
Engine rated torque(ft*Ib)/rpm115.1/1600
Engine cylinder number-bore x strokein4-3.43×4.03
Piston displancementcu in148.5
