  • H3 Series 1-1.8t

›

H3 Series 1-1.8t
IC Products

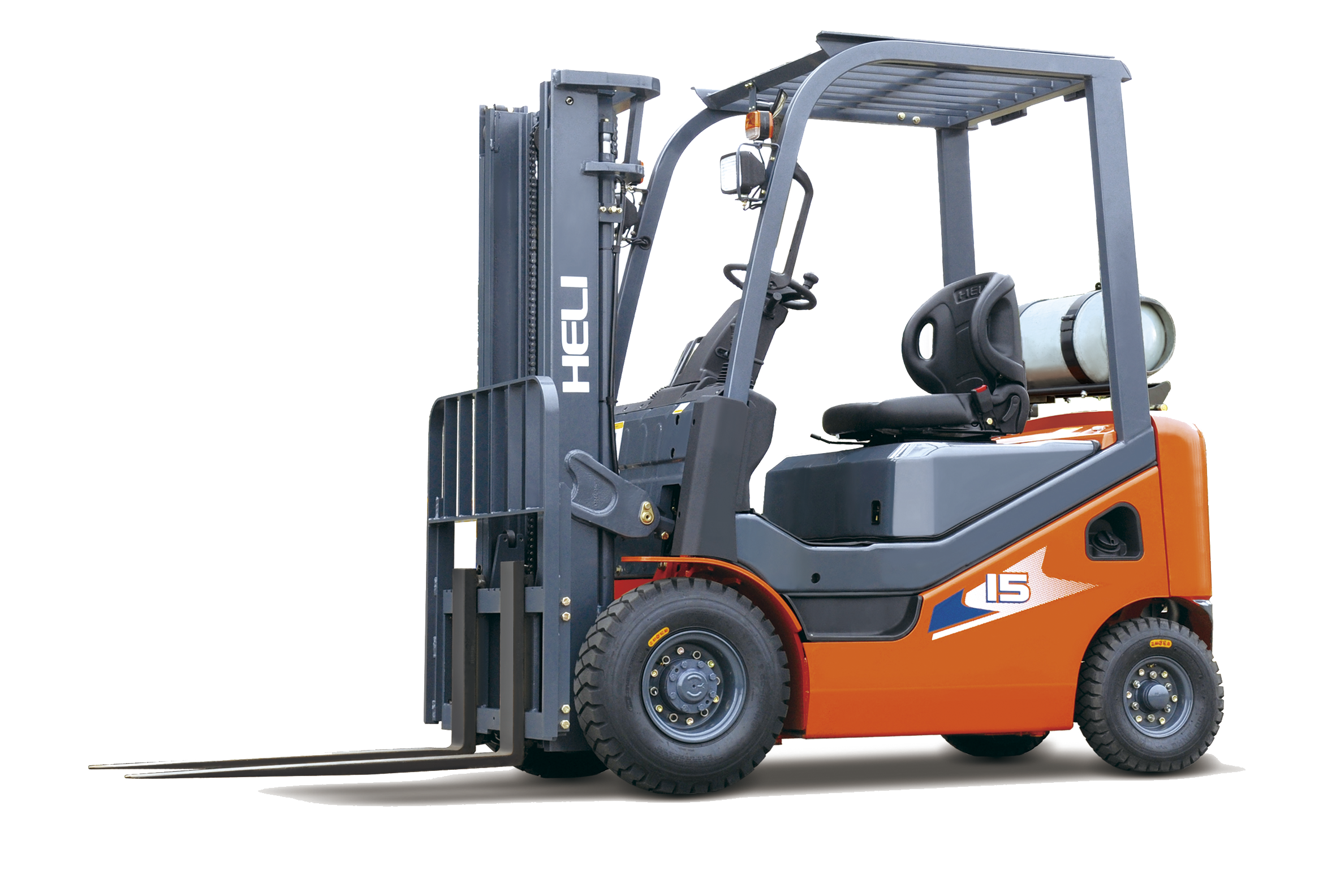

LPG Forklift-Pneumatic (2000-3500 lbs. Capacity)

Share ：


Product Feature
    The main parameter
  • H3 series is the key product which HELI blockbuster launches. Based on the high technology, mass manufacturing capability and experienced sales and services of HELI, new H series becomes a milestone of HELI’s products which fully consider the needs of market and customers

    • Improved performance, superior quality
  • ● Vibration 20% reduced

  • ●Noise 3dB reduced

  • ● Workspace 45% increased

  • ● Operator’s view 20% improved

  • ● Working efficiency 20% improved

  • ● Loading capacity increased over 5%

  • ● Stability 5% improved

  • ● Reliability 40% improved

  • ● Engine hood open angle increased to 80°

The main parameter
IdentificationSeries
H3 Series
Model
CPYD10CPYD15CPYD18
Rated capacitylb200030003500
Load centerin242424
DimensionsOverall height(overhead guard)in848484
Overall length(with fork/without fork)in125.9/89.6126.0/89.8126.7/90.5
Overall width （single Tyre）in42.142.142.1
Min.turning radius(exterior)(A single tyre is the same double tires)in73.875.276.0
WeightTotal weightlb541460796365
Wheels,ChassisTyre size(front/rear)in6.50-10-10PR/5.00-8-8PR6.50-10-10PR/5.00-8-8PR6.50-10-10PR/5.00-8-8PR
PerformanceMax.traveling speed (Loaded/Unloaded)mph10.0/10.610.0/10.610.0/10.6
Engine mode
KUBOTA WG2503
Engine rated powerHP/rpmGAS:57.4/2600 LPG:58.3/2600
Engine rated torque(ft*Ib)/rpmGAS:128.7/1400 LPG:120.7/1800
Engine cylinder number-bore x strokein4-3.5x40.3
piston displancementcu in155.7
