  • H2000 Series 4-5t

›

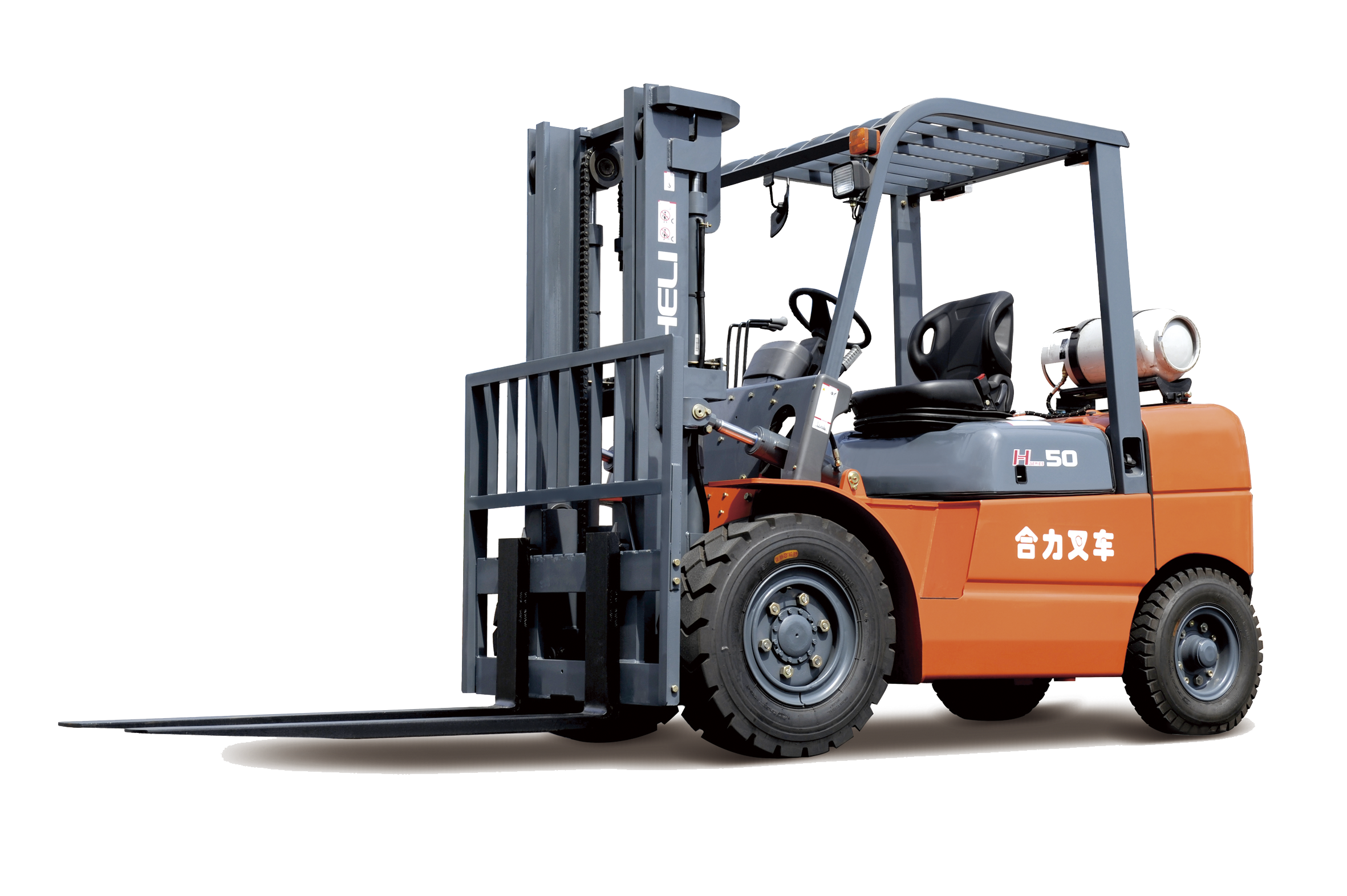

H2000 Series 4-5t
IC Products
LPG Forklift-Pneumatic (8000-10000 lbs. Capacity)

Share ：


Product Feature
  • ● Enhanced comfort through innovative design.

  • ● Hydraulic transmission and mechanical transmission types are all available.

  • ● Flexible steering and small turning radius, with full Hydraulic Steering System.

  • ● We use scientific ergonomic method to design H2000 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.

  • ● Avariety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.

  • ● Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.

  • ● Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.

  • ●.Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.

The main parameter
IdentificationSeries
H Series
Model
CPYD40CPYD45CPYD50
Rated capacitylb8000900010000
Load centerin242424
DimensionsOverall height(overhead guard)in939191
Overall length(with fork/without fork)in163/121164/122172/124
Overall width （single Tyre）in585858.3
Min.turning radius(exterior)(A single tyre is the same double tires)in107108110.2
WeightTotal weightlb139101435014900
Wheels,ChassisTyre size(front/rear)in8.25-15-14PR/7.00-12-12PR8.25-15-14PR/7.00-12-12PR300-15-18PR/7.00-12-12PR
PerformanceMax.traveling speed (Loaded/Unloaded)mph14.9/15.514.9/15.514.9/15.5
Engine mode
GM4.3L Certificate
Engine rated powerHP/rpmGAS:94/2300 LPG:103/2300
Engine rated torque(ft*Ib)/rpmGAS:212.6/2300 LPG:76.3/2300
Engine cylinder number-bore x strokein6-4x3.5
piston displancementcu in268/261.2
