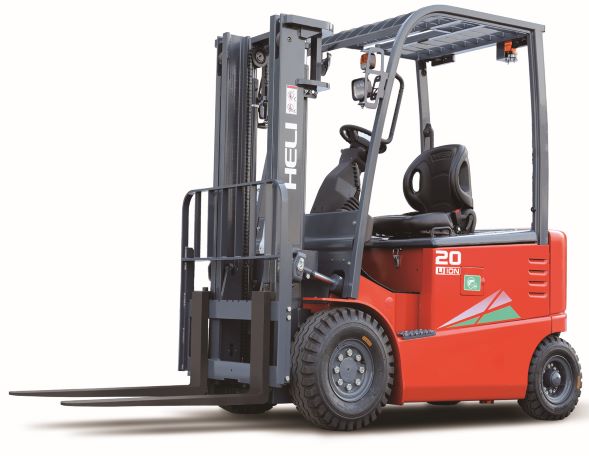

G Series 2-3.5t

Electric Forklift

Four Wheel Forklift ( Lithium-ion ) 80V (4000-7700 lbs. Capacity)

Product Feature

1. Lithium battery is more environmentally friendly, maintenance-free, long life and high efficient.

2. The controller is installed on the balance weight, and the heat balance temperature is low.

3. Strengthened steering axle with high supporting point increase the bearing capacity; increased cylinder

diameter reduces steering pressure and steering energy consumption.

4. The center of gravity is reduced through tail-free structure and thus truck stability is improved. 5. Fast

charging, complete 100% charging in 1-2 hours.

6. Adapt CATL cell as Lith-ion battery standard configuration, reliable quality.

The main parameter

Identification	Model Designation		CPD20	CPD25	CPD30	CPD35
	Load Capacity	lbs	4000	5000	6000	7700
	Load Center	in	20	20	20	20
	Operator Type		Seated	Seated	Seated	Seated
Dimensions	Overhead Guard Height	in	85	85	85	85
	Length to fork face	in
	Overall Width	in	47	47	49	49
	Turning Radius (In standaed battery compartment)	in	79	80	88	89
Wheels,Chassis	Tyre（front）		23×9-10-16PR	23×9-10-16PR	28×9-15-12PR	28×9-15
	Tyre（rear）		18×7-8-14PR	18×7-8-14PR	200/50-10	200/50-10
	Tyre Type		Pneumatic	Pneumatic	Pneumatic/Solid	Solid
Weight	Total Approximate Weight(W/O battery)	lbs	7980/7363	8620/7958	9898/8884	11243/10229
Performance	Travel Speed,loaded/unloaded	mph	10/10	10/10	11/11.2	10/11
	Lifting Speed,loaded/unloaded	mph	0.78/1.14	0.74/1.14	0.76/1.03	0.73/1.00
	Battery Voltage/rated capacity(5h)	V/Ah	80/271	80/271	80/404	80/404
	Drive Motor - 60 Min. Rating	HP	16	16	22.2	22.2
	Pump Motor - 15 Min. Rating	HP	20	20	18	18
	Drive Motor Control Method		MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
	Controls		ZAPI	ZAPI	ZAPI	ZAPI
