  • G Series 1-2.5t

›

G Series 1-2.5t

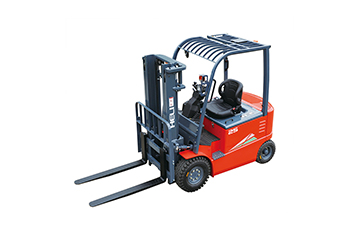

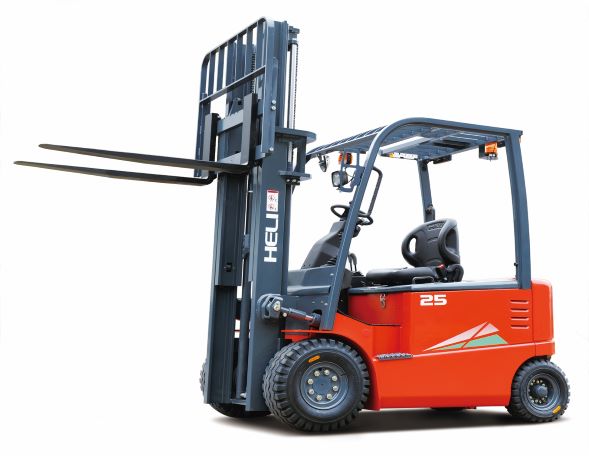

Electric Forklift
Four Wheel Forklift 48V (2000-5000 lbs. Capacity)

Share ：


Product Feature
  • ● Reliable AC Traction motor and AC Pump motor which are brushless and maintenance free.

  • ● Reliable AC Traction controller and AC Pump controller self-protecting and maintenance free.

    • ● Interactive communication multifunctional LED meter with friendly interface, display mass

    information, password handing and maintenance free.

  • ● Standard CAN BUS interface for simple and reliable communication.

  • ●Travel speed and lifting speed closed loop control.

  • ● Powerful security, self-braking on ramp.

  • ● New technology of dynamic signal load sensing in hydraulic system.

  • ● Travel speed normal/cutback choice function.

  • ● Electromagnetic compatibility reaches international standards.

The main parameter
IdentificationSeries
G Series
Model Designation
CPD10CPD15CPD18CPD20CPD25
Load Capacitylbs20003000350040005000
Load Centerin2424242424
Operator Type
SeatedSeatedSeatedSeatedSeated
DimensionsOverhead Guard Heightin8484848585
Length to fork facein8181819090
Overall Widthin4343434747
Turning Radius (In standaed battery compartment)in6969697980
Right Stack Aisle width (Pallet size 40x40in，clearance:7.9in）in131131131143144
Right Stack Aisle width (Pallet size 47.2x47.2in，clearance:7.9in）in139139139151152
Wheels,ChassisTyre Type
PneumaticPneumaticSE/PneumaticPneumaticPneumatic
WeightTotal Approximate Weight(W/O battery)lbs6440/49406440/49407100/53609170/67509590/6950
PerformanceTravel Speed,loaded/unloadedmph9.3/9.99.3/9.99.3/9.99/9.39/9.3
Battery Voltage/rated capacity(5h)V/Ah48/48048/40048/48048/70048/700
Drive Motor - 60 Min. RatingHP11111115.415.4
Pump Motor - 15 Min. RatingHP14.214.214.220.120.1
Drive Motor Control Method
MOSFET/ACMOSFET/ACMOSFET/ACMOSFET/ACMOSFET/AC
Controls
ZAPIZAPIZAPIZAPIZAPI
