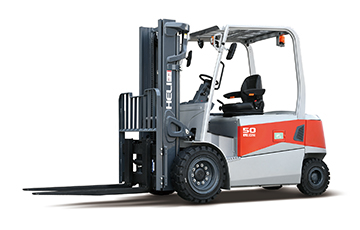

G3 Series 4-5t

Electric Forklift

Four Wheel Forklift ( Lithium-ion ) 80V (8000-11000 lbs. Capacity)

Product Feature

1. Lithium battery is more environmentally friendly, maintenance-free, long life and high efficient.

2. The controller is installed on the balance weight, and the heat balance temperature is low.

3. Strengthened steering axle with high supporting point increase the bearing capacity; increased

cylinder diameter reduces steering pressure and steering energy consumption.

4. The center of gravity is reduced through tail-free structure and thus truck stability is improved.

The main parameter

Identification	Model Designation		CPD40	CPD45	CPD50
	Load Capacity	lbs	8000	9000	11000
	Load Center	in	20	20	20
	Operator Type		Seated	Seated	Seated
Dimensions	Overhead Guard Height	in	90	90	90
	Length to fork face	in
	Overall Width	in	53	53	59
	Turning Radius (In standaed battery compartment)	in	101	101	101
Wheels,Chassis	Tyre（front）		250-15	250-15	28×12.5-15
	Tyre（rear）		21×8-9	21×8-9	21×8-9
	Tyre Type		Solid	Solid	Solid
Weight	Total Approximate Weight(W/O battery)	lbs	14700/13415	15068/13558	15895/14385
Performance	Travel Speed,loaded/unloaded	mph	8/8.7	8/8.7	8/8.7
	Lifting Speed,loaded/unloaded	mph	0.69/1.00	0.63/1.00	0.58/1.00
	Battery Voltage/rated capacity(5h)	V/Ah	80/542	80/606	80/606
	Drive Motor - 60 Min. Rating	HP	26.8	26.8	26.8
	Pump Motor - 15 Min. Rating	HP	35.5	35.5	35.5
	Drive Motor Control Method		MOSFET/AC	MOSFET/AC	MOSFET/AC
	Controls		ZAPI	ZAPI	ZAPI
