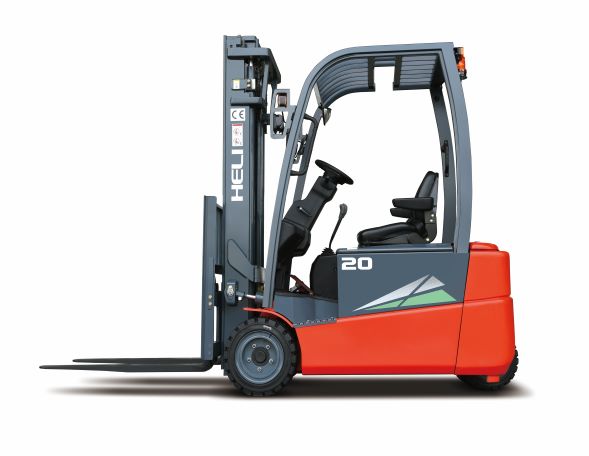

G2 Series 1.5-2t
Electric Forklift
Three Wheel Forklift 48V (3000-4000 lbs. Capacity)

Share :

Product Feature

    Product Feature:


    Magnetic brake on driving axle ,the truck can automatic parking in slope or flat.

    Rear handle with horn function contributes to stable sitting pose when travelling backward and driving comfort and safety.

    Automobile type direction switch effectively improve driving comfort level.

    Sensor operated power steering(option),more comfortable.

    Side battery as option, easy replacement.

    Finger switch as option, more speedy operation.

     Improved drivers view

    Newly designed wide-view mast with special chains enlarges operator’s view effectively.

    Larger arc shape of the overhead guard and grid tray with proper angle increase operator’s upward view.


    Better loading capacity at high position.

    Automatic deceleration on curved road, more intelligent and safe.

    Standard configuration of warning light and drive OPS system improve whole truck’s safely.

     Working efficiency

    Small turning radius makes steering flexible and easy.

    The truck has fast driving and lifting speed, higher working efficiency.

    Three speed mode, high performance.

    Larger battery capacity for longer single shift time.

     Energy efficiency

    With optimized hydraulic system, the truck is more energy-efficient and has lower energy consumption.

    Save more than 80% lighting energy with LED lights.

    Motor regenerative braking can recycle more electric energy.


    The cover can be disassembled easily, contributes to quick and convenient maintenance.

The main parameter

G2 Series
Model Designation
Load Capacitylbs300035004000
Load Centerin242424
Operator Type
DimensionsOverhead Guard Heightin808080
Length to fork facein72.576.776.7
Overall Widthin424444
Turning Radius (In standaed battery compartment)in586262
Right Stack Aisle width (Pallet size 40x40in,clearance:7.9in)in979797
Right Stack Aisle width (Pallet size 47.2x47.2in,clearance:7.9in)in132136136
Wheels,ChassisTyre Type
WeightTotal Approximate Weight(W/O battery)lbs692576128088
PerformanceTravel Speed,loaded/unloadedmph9.9/10.59.9/10.59.9/10.5
Battery Voltage/rated capacity(5h)V/Ah48/66048/77048/770
Drive Motor - 60 Min. RatingHP6.4x26.4x26.4x2
Pump Motor - 15 Min. RatingHP151515
Drive Motor Control Method
